YG7 Tungsten Carbide Rotary Files Customized LOGO

Brand Name : KTS

Model Number : 3*3mm Solid carbide burrs

Certification : ISO9001:2008

Place of Origin : Sichuan, China

MOQ : 1 Set/Sets

Price : $9.00 - $16.00 / Sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Set/Sets per Month

Delivery Time : 7-15

Packaging Details : The carton

Name : Tungsten Carbide Rotary Files

Material : Tungsten Carbide

shank hardness : HRA 89-92.5

shank diamter : 3mm/6mm/8mm/10mm...

Grade : YG7

LOGO : Customized

Advantages : Dust-Free Efficiency\ Exceptional Durability

Business Type : Manufacture & Trade Integration

Certificate : ISO9001:2008

Port : Any port

Contact Now

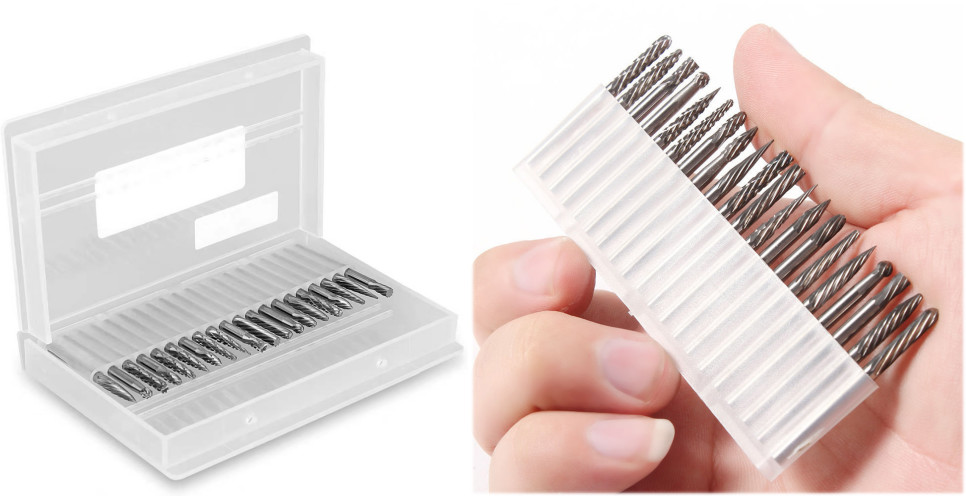

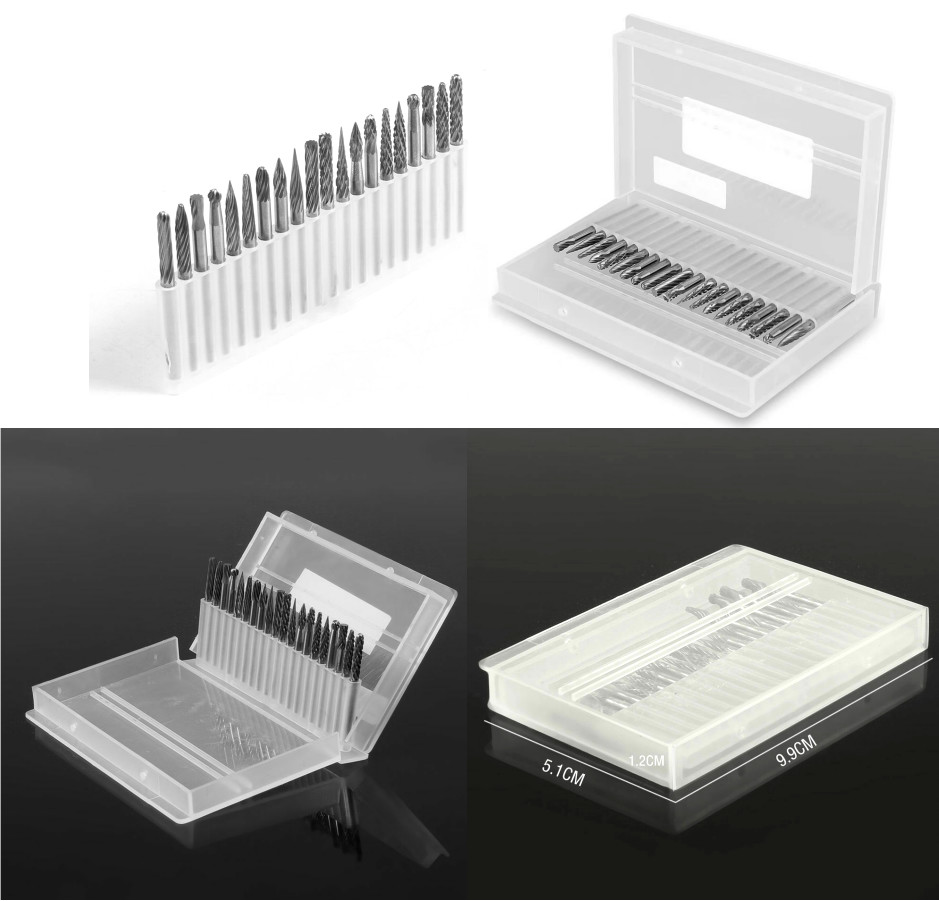

20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs

Advantages:

Exceptional Quality: 100% quality, brand-new excellence.
Versatile Processing: Processes metals and non-metals efficiently.
Dust-Free Efficiency: Minimizes dust pollution for cleaner workspaces.
High Production Efficiency: Significantly faster than traditional tools.
Precision Finishing: Ensures high-quality finishes with intricate mold cavities.
Exceptional Durability: Long-lasting, surpasses traditional tools by significant margins.
User-Friendly and Safe: Easy to use, reduces labor intensity.

Product Application:

Wide Material Processing: Suitable for metals, ceramics, marble, and more.
Versatile Industry Use: Ideal for shipping, auto, and foundry fabrication.
High-Speed Machining: Swift and precise across different materials.
Extended Product Life: Guaranteed long life with excellent raw materials.

How to use the carbide burrs?

1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.

Diameter	Burr RPM
2.35mm or 3/32"	17,000 - 26,000
3mm or 1/8"	17,000 - 26,000
6mm or 1/4"	11,000 - 16,500
12mm or 1/2"	8,000 - 12,000
16mm or 5/8"	7,650 - 11,500

2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Parameter table:

Product name	Tungsten Carbide Rotary Files
Brand	KTS
shank hardness	HRA 89-92.5
Material	Tungsten Carbide
shank diamter	3mm/6mm/8mm/10mm...
Application	Versatile Industry Use
speed of tool	15000-45000Turn/min
Certificate	ISO9001:2008
Advantages	User-Friendly and SafeHigh Production Efficiency

YG7 Tungsten Carbide Rotary Files Customized LOGO

Risk guarantee

· 100% raw material, no waste tungsten carbide added

· Do not use through hole, tail hole welding

· 100% factory direct sales

1. Sea Transportation
2. Air Transportation
3. Land Transportation
4. Railway Transportation

Product Tags:

YG7 Tungsten Carbide Rotary Files
