OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

Product Categories
JOINT CARBIDE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

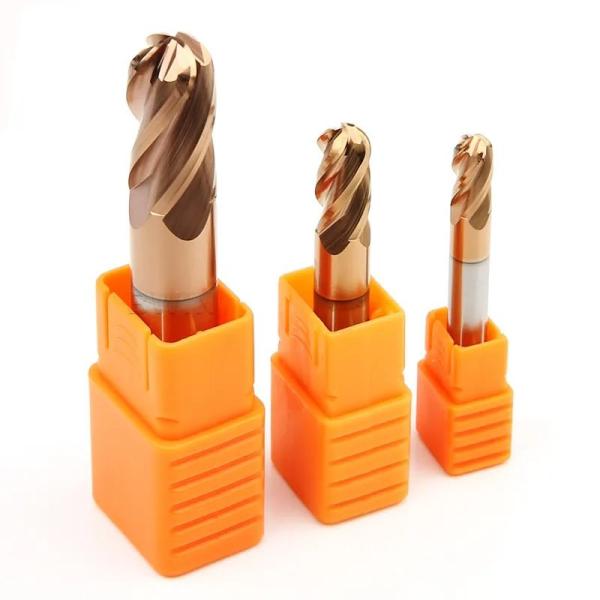

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

  • 1
  • 2

Brand Name : KINGTOOLS

Model Number : HRC55° End Mill

Certification : ISO 9001

Place of Origin : SICHUAN, CHINA

MOQ : 100pcs

Price : $1-20

Payment Terms : L/C, , T/T, Western Union, MoneyGram

Supply Ability : 20000PCS PER MONTH

Delivery Time : 7-15

Packaging Details : Platic box & carton

Product name : Carbide Ball Nose End Mill

Coating : AlTiN,TiAIN,TiN,NANO,DLC

Hrc : HRC 40 to HRC 68

Diameter : 1.0mm to 22.0mm,D 1 - 25mm

Suitable for : Carbon Steel,Stainless Steel,copper

Flutes : 1-10F

Transport : TNT\DHL\ Fedex\ EMS\ UPS

Oem : OEM is Hot Welcome

Contact Now

OEM 4 6 8 mm CNC Ball Nose HRC55 coating End Mills Tungsten Carbide End Mill

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

​Specifications:

Product Name
Carbide Ball Nose End Mills
Material
100% New Raw Material Carbide
Flute
1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
HRC
45 / 55 / 58 / 60 / 65 /70
Customized
Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Coating Thickness
2um-4um
Shank Diameter
1mm-20mm
Overall Length
50mm-200mm
Application
General-purpose operation Slotting, Drilling, Profiling
Working Machine
CNC (computer numeric controlled) tool and cutter grinder machines
Work-piece material
Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.

About Coatings:

Endmill Grade
Coating Name
Color
Hv
μm
Friction
The MaxºC
Application
HRC 45° coating
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 50° coating
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 55° coating
TiSiAlN
bronzed
3400
0.5
0.7
900ºC
General Steel,cast cast iron
HRC 60° coating
AlCrSiN
black
4000
0.4
0.35
1100ºC
High Hard Material, steel, cast iron, etc
HRC 65° coating
nACo 3 Blue
blue
4500
0.4
0.45
1200ºC
Titanium Alloy, High-temperature Alloy,material, etc
HSS
nACo 3 Blue
Other
4500
0.4
0.45
1200ºC

Stainless steel
Free Sample Test : Contact Us For Inquiry

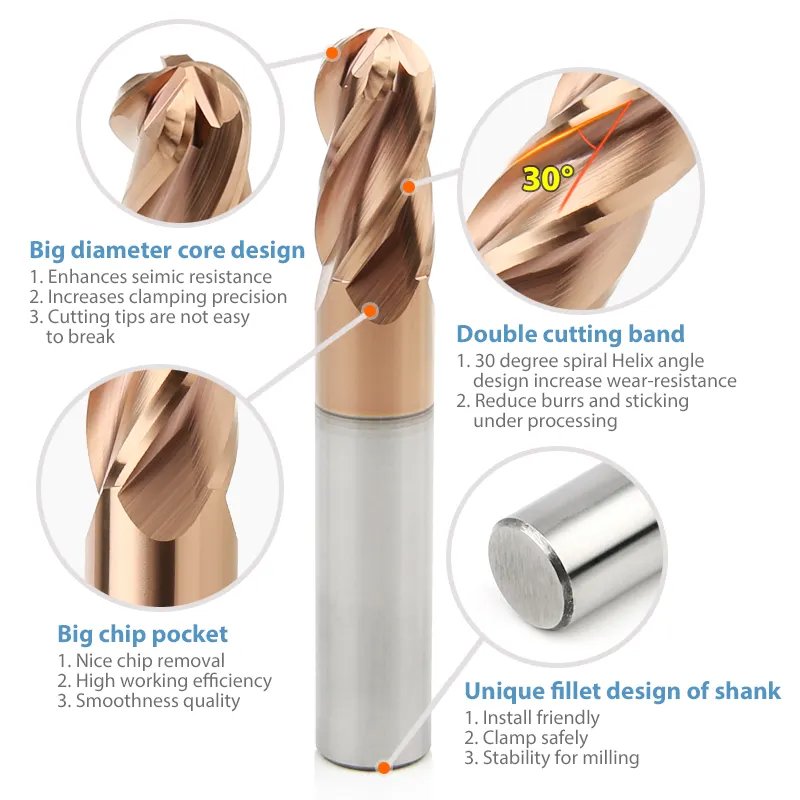

Product details:

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

Product Catalog:

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

Product Sizes:

Specification
Flute Dia.
Flute Length
Shank Dia.
Overall length
R1.5*6*3*50
3
6
3
50
R1.5*6*3*75
3
6
3
75
R1.5*6*3*100
3
6
3
100
R0.5*2*4*50
1
2
4
50
R0.75*3*4*50
1.5
3
4
50
R1*4*4*50
2
4
4
50
R1.25*5*4*50
2.5
5
4
50
R1.5*6*4*50
3
6
4
50
R1.75*7*4*50
3.5
7
4
50
R2*8*4*50
4
8
4
50
R2*8*4*75
4
8
4
75
R2*8*4*100
4
8
4
100
R0.5*2*4*75
1
2
4
75
R0.75*3*4*75
1.5
3
4
75
R1*4*4*75
2
4
4
75
R1.25*5*4*75
2.5
5
4
75
R1.5*6*4*75
3
6
4
75
R2.5*10*5*50
5
10
5
50
R2.5*10*5*75
5
10
5
75
R2.5*10*5*100
5
10
5
100
R0.5*2*6*50
1
2
6
50
R0.75*3*6*50
1.5
3
6
50
R1*4*6*50
2
4
6
50
R1.25*5*6*50
2.5
5
6
50
R1.5*6*6*50
3
6
6
50
R2*8*6*50
4
8
6
50
R2.5*10*6*50
5
10
6
50
R3*12*6*50
6
12
6
50
R3*12*6*75
6
12
6
75
R3*12*6*100
6
12
6
100
R3*12*6*150
6
12
6
150
R3.5*14*8*60
7
14
8
60
R4*16*8*60
8
16
8
60
R4*16*8*75
8
16
8
75
R4*16*8*100
8
16
8
100
R4*16*8*150
8
16
8
150
R4.5*18*10*75
9
18
10
75
R5*20*10*75
10
20
10
75
R5*20*10*100
10
20
10
100
R5*20*10*150
10
20
10
150
R5.5*22*12*75
11
22
12
75
R6*24*12*75
12
24
12
75
R6*24*12*100
12
24
12
100
R6*24*12*150
12
24
12
150
R7*28*14*80
14
28
14
80
R7*28*14*100
14
28
14
100
R7*28*14*150
14
28
14
150
R8*32*16*100
16
32
16
100
R8*32*16*150
16
32
16
150
R9*36*18*100
18
36
18
100
R9*36*18*150
18
36
18
150
R10*40*20*100
20
40
20
100
R10*40*20*150
20
40
20
150
Remarks: The milling cutter model marked with color is a common model.

Production Process:

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

Package & Shipping:

OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper

Our Advantages:
Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
Our Company:
OEM Carbide Ball Nose End Mill Set HRC55 For Carbon Steel Stainless Steel Copper
