Round Nose Tree Shape Tungsten Carbide Rotary Files Burrs

JOINT CARBIDE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

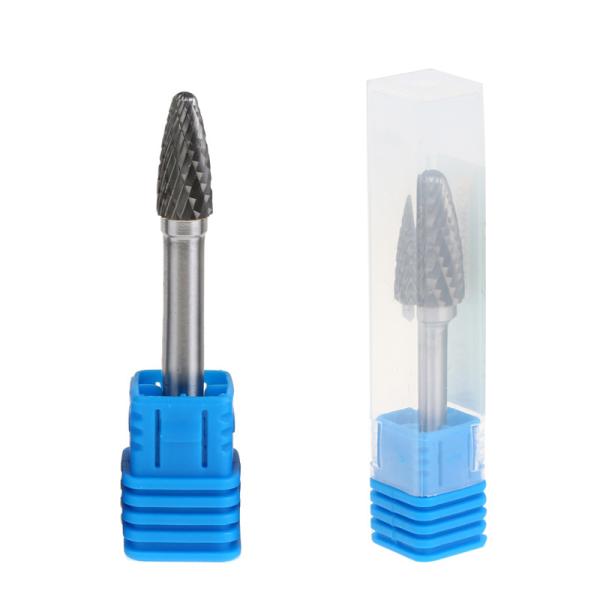

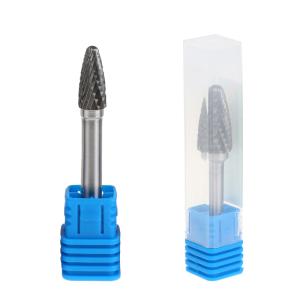

Round Nose Tree Shape Tungsten Carbide Rotary Files Burrs

  • 1
  • 2

Brand Name : KTS

Model Number : F

Certification : ISO9001

Place of Origin : Sichuan China

MOQ : 100 Pieces

Price : USD 0.99-9.99/Piece

Payment Terms : T/T, Western Union

Supply Ability : 230000 Piece/Pieces per Month

Delivery Time : 7-25days

Packaging Details : Plastic Case

Name : Carbide Rotary File

Shape : Round Nose Tree Shape

Grade : YG6/YG8/YG12X

Size : 3MM-25MM

Shank : 6MM

OEM/ODM : Available

Type : F

Origin : Sichuan

Contact Now

Electric Tool Double Cut Rotary File Tungsten Carbide File Round Nose Tree Shape Carbide Burr

Feature:
●The productivity is increased ten times than using hand tools, and three to five times higher than using small grinding wheels
●The service life is ten times that of high-speed steel burrs and fifty times that of small diamond wheels.
● Finish machining various cavities.
●Remove burrs on castings, forgings and welding slag on welding components.
●Chamfers on mechanical parts, round beads or flutes.
●Chamfer or deburr the pipe.
●Polish the impeller channel.
●Grinding the hole into an accurate shape.


The machines used for cemented carbide rotary files are usually hand-held, driven by compressed air or electricity. Install carefully and handle the burrs properly. Only at high speeds can carbide rotary files exhibit excellent performance. Recommended spindle speed.
Applications:
Tungsten carbide burrs are widely used in the transportation industry, transplantation of automobile engines and manufacturing of foundries. With high speed and high hardness, it can process many materials such as cast iron, carbon steel, alloy steel and non-ferrous metals. High-quality raw materials ensure a long service life of the product, which is the most critical factor affecting tool life.


SF:Tree Shape With Radius End

Tool Number
Single Cut

Tool Number
Double Cut

Shape

Cutting Dia.
D1

Shank Dia.
D2

O.A.L.
L1

L.O.C.
L2

725-SF41727-SF41SF-41M33386
705-SF11707-SF11SF-11M365012.7
725-SF42727-SF42SF-42M333812.7
725-SF42L2727-SF42L2SF-42M335012.7
725-SF42L3727-SF42L3SF-42M337612.7
725-SF53727-SF53SF-53M4.7535012.7
725-SF51727-SF51SF-51M6.335012.7
705-SF1707-SF1SF-1M665016
705-SF3707-SF3SF-3M9.566419
705-SF4707-SF4SF-4M1167025
705-SF13707-SF13SF-13M12.766419
705-SF5707-SF5SF-5M12.767025
705-SF5MZ707-SF5MZSD-5M1266525
705-SF6707-SF6SF-6M1667625
705-SF7707-SF7SF-7M1967625
705-SF14707-SF14SF-14M1968332
705-SF15707-SF15SF-15M1968938
